PRODUCT Detail

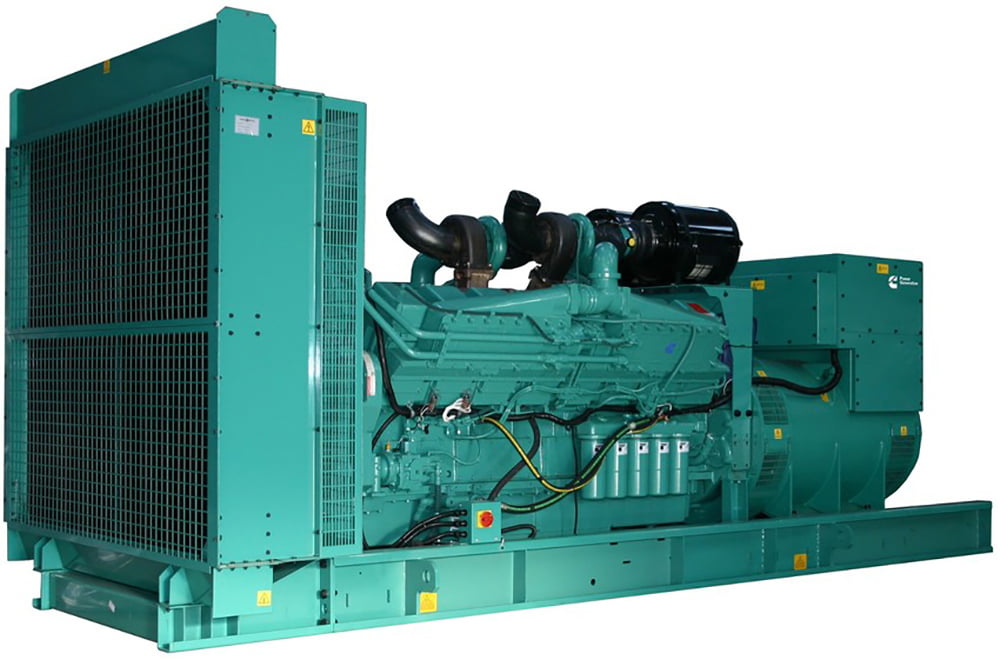

This Cummins® commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary Standby, Prime Power, and Continuous duty applications.
Design: 4 cycle, V-block, turbocharged and after-cooled
Bore: 158.8 mm (6.25 in.)
Stroke: 158.8 mm (6.25 in.)
Displacement: 50 L (3067 in3)
Cylinder block engine: Sixteen-cylinder vee formation, direct injection, four-cycle diesel
Battery capacity: 1800 amps at ambient temperature 32 ºF (0 °C)
Battery charging alternator: 55 amps
Starting voltage: 24 Volts, negative ground
Fuel system: Direct injection
Fuel filter: Dual spin on paper element fuel filters with standard water separator
Air cleaner type: Dry replaceable element
Lube oil filter type(s): Spin-on paper element full flow and bypass lube oil filters
Standard cooling system: 104 ºF (40 ºC) ambient radiator
Cummins heavy-duty engine – Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
Permanent Magnet Generator (PMG) – Offers enhanced motor starting and fault clearing short circuit capability.
Alternator – Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class F or H insulation.
Control system – Standard PowerCommand® electronic control provides total system integration including remote start/stop, precise frequency and voltage regulation, alarm and status message display, AmpSentryTM protection, output metering, auto-shutdown.
Cooling system – Standard integral setmounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
Enclosures – Optional weather-protective and sound-attenuated enclosures are available.
Warranty and service – Backed by a comprehensive warranty and worldwide distributor network.
