PRODUCT Detail
This Cummins Power Generation rental package is a fully integrated, robust power generation system that sets new benchmarks in performance, reliability and efficiency for standby and prime power applications.
Design: 4 cycle, 12 cylinder diesel, turbo charged, charge air cooled
Bore: 159 mm
Stroke: 159 mm
Displacement: 38 L
Cylinder block: Cast iron
Battery capacity: 2 parallel strings of 2 x 12V, 75A/hr
Battery charging alternator: 35A
Starting voltage: 24V negative ground
Fuel system: Direct inject, electric fuel control (EFC) governor
Fuel filter: Dual spin on paper element fuel filters
Air cleaner type: Dry replaceable element with restriction indicator
Lube oil filter type(s): Spin on full flow filter
Standard cooling system: 50 ºC ambient radiator
Dual frequency to meet diverse energy needs – The versatile C1000 D2R is both 50 and 60 Hz capable, with a wide voltage range for continuous, prime or standby applications in commercial, residential, industrial, utilities, and more.
An engine that works harder, longer Cummins KTA38 G14 engine is recognized for performance, reliability and durability worldwide. With its very high derating threshold for temperatures, altitudes and humidity, the KTA38 G14 engine ranks among the top performers in the harshest operating environments.

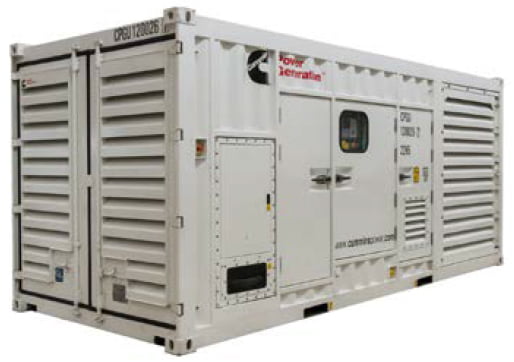

Greater mobility, lower transportation cost – To meet the increasing demand for electricity, the C1000 D2R comes in a standard 20′ ISO container (low cube) for easy transportation across borders and regions. The CSC-certified modules can be shipped around the world like regular containers, which means lower freight and transportation costs.
A unit that stays cool, in the hottest places on earth – The cooling system is engineered to meet Limiting Ambient Temperature (LAT) up to 50 °C at continuous rating. Designed with vertical hot air discharge, the C1000 D2R is suitable for multiple set installations
