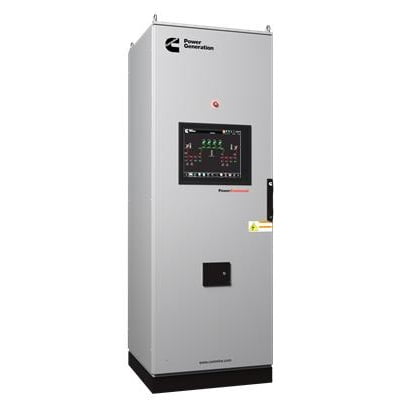

The Cummins PowerCommand® DMC8000 is a completely customizable power system paralleling control offering integrated control solutions for complex power systems that control an unlimited number of gensets, utilities, and loads for optimal power control.
PRODUCT Detail
The Cummins PowerCommand® DMC8000 offers complete power control for any power system. The built-to-order, fully-customizable power controller offers more than 1,200 factory tested failure scenarios to provide best-in-class performance, resiliency, and system uptime in any potentially disruptive scenario.

Wherever you are, whatever your job, Cummins expertise is Always On
Cummins offers customers unrivaled peace of mind when it comes to servicing and maintaining digital master controls. Best-in-class aftermarket capabilities via your dedicated local contact, supported by a global system of service technicians, engineers, and part distribution facilities in over 190 countries.

Model | Product Application | System Voltage | Colored Touch-screen User Interface | Generators Supported | Loads Supported | Utilities Supported | Multiple System Configuration Topologies | Communication Protocol |
---|---|---|---|---|---|---|---|---|
Load Control Module (LCM0408) | Load Control | LV | 7″ | Up to 4 | Up to 8 | None | N/A | Modbus TCP/IP (Standard) |
Load Control Module (LCM0612) | Load Control | LV | 7″ | Up to 6 | Up to 12 | None | N/A | Modbus TCP/IP (Standard) |
DMC2000 | Simple Power System | LV & MV | 7″ | Up to 8 | Up to 10 | Up to 1 |
| Modbus TCP/IP (Standard) |
DMC6000 | Simple Power System with Reporting | LV & MV | 15″ | Up to 16 | Up to 16 | Up to 2 |
| Modbus TCP/IP (Standard) BACnet (option) |
DMC8000 | Complex Power System | LV & MV | 19″ / Custom | Unlimited | Unlimited | Unlimited |
| Modbus TCP/IP (Standard) BACnet (option) |
All units meet the following codes and standards: UL891, IEC 61439-2, CSA 22.2, Seismic and CE Marked.
Application Usage:
- Product Application: Complex & Customizable Power Systems
- System Voltage: Low Voltage & Medium Voltage

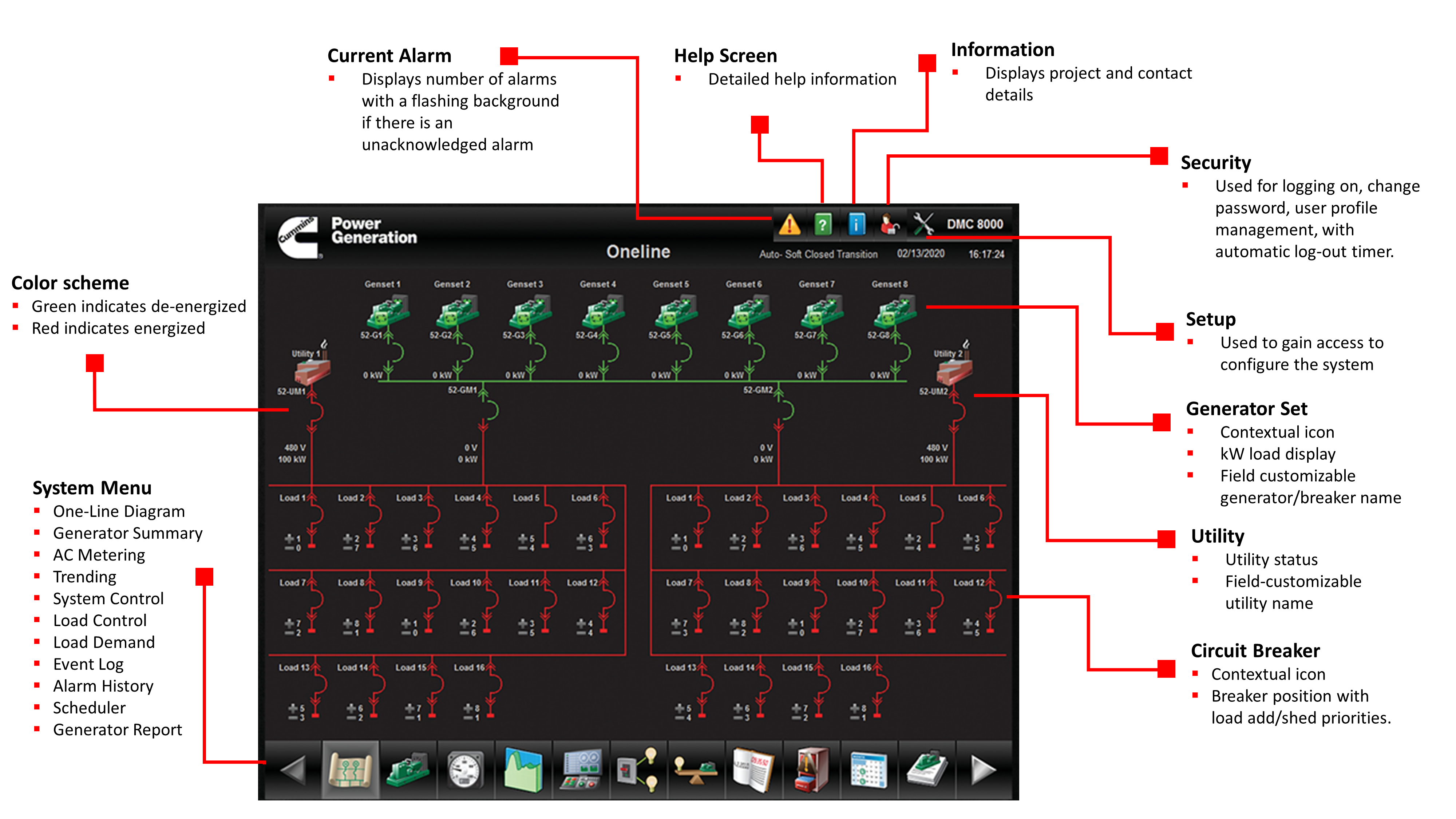

Built-in 19” Color Touchscreen
- Resolution: 1024×786
- High-resolution animated graphics
- Real-time and historical trending data.
- Optional remote touchscreen (custom-size) available
System Capabilities
- Supports unlimited generators, loads and utilities
- Fully customizable to any system topology
- Redundant PLC & I/O Capability
- Distributed logic usage based on ring ethernet – fastest industrial communication protocol at 100 Mbps
- Backed by fail-safe cybersecurity
- Communication Protocol:
- Modbus RTU Interface – RS232 & RS485
- Modbus TCP/IP
- BACnet
- Remote Access via Web Brower
Reporting:
- Email and text notifications for faster maintenance response times & real-time performance updates
- Compliance reports
Accessibility:
- Service access with external programming ports
- Highly visible indication light for greater uptime, serviceability and operator safety.
- Four levels of access for maximized security: Technician, Manager, Operator & Guest.
- Data logging for access to historic performance summaries and maintenance report logs
- Email/USB/Print functionality for all the alarms, trends and reports
