PRODUCT Detail

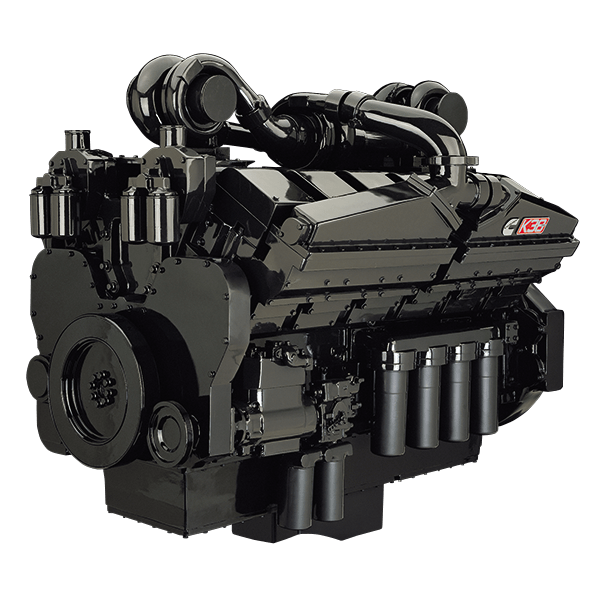

In mining applications, continuous uptime makes the difference in productivity. That’s where the legendary durability of the Cummins K38 high horsepower engines provide a big advantage for your mining business. With ratings from 925 hp to 1450 hp (690 -1082 kW), K38 engines have proven performance with the mechanical simplicity of Cummins PT® fuel system. Features such as full-authority Cummins CENTRY™ electronic controls provide engine monitoring and automatic timing adjustment for peak performance and fuel efficiency and CENSE™, an electronic monitoring package for increased uptime. Cummins K38 and K1500E engines are designed to reduce engine operating and maintenance costs while maximizing productivity.
The K1500E applies robust CENTRY electronics and other improvements to the proven K38 engine platform to create a V12 engine reliable, durable and smart enough for the toughest mining applications such as electric drive haul trucks, loaders, excavators and shovels. In hauling equipment for example, the electronic controls work with the GE Statex I, II or III Advanced Electric Drive Systems for improved machine efficiency and fuel savings.
The base warranty includes full coverage on K Series engines and branded components, including electrics such as starters and alternators for unlimited hours during the first year of operation, extending through 2 years or 2,000 hours (whichever comes first). The base warranty also includes 3-year/10,000-hour standard protection on major components. Extended coverage is available with our Encompass protection plans with the flexibility to meet the needs of your mining operation. Cummins Encompass has you covered, around the clock and around the globe.
Cummins combines proven performance with advanced technology and a global service and support network with a hard-earned reputation for responding to every need, at every hour of every day.
K1500E | K38 | |||
Engine Type | Vee 12 | Vee 12 | ||
Displacement | 2300 cu in | 38 liters | 2300 cu in | 38 liters |
Advertised Horsepower | 1260-1450 hp | 940-1082 kW | 925-1350 hp | 690-1007 kW |
Peak Torque | 3767-4360 lb-ft | 5107-5911 N•m | 3020-3485 lb-ft | 4095-4725 N•m |
Bore and Stroke | 6.25 in x 6.25 in | |||
Aspiration | Turbocharged and Aftercooled | |||
Oil System Capacity | 142.4 U.S. qt | 135 liters | 142.4 U.S. qt | 135 liters |
Coolant Capacity | 125 U.S. qt | 118 liters | 116 U.S. qt | 110 liters |
Length | 90 in | 2281 mm | 86.2 in | 2189 mm |
Width | 54 in | 1362 mm | 54.6 in | 1387 mm |
Height | 69 in | 1751 mm | 64.2 in | 1631 mm |
Wet Weight | 9480 lb | 4300 kg | 9250 lb | 4196 kg |
- PT Fuel System – uses the time-tested and proven PT fuel system for high performance and ease of maintenance. PT injectors are built to handle high pressures for optimum combustion.
- Fillet-Hardened Crankshaft – smaller bolt circle and rolled threads for strength and durability
- Cummins Prelub System – Distributes and pressurizes oil in the engine before cranking can occur, and is proven to greatly extend life-to-rebuild.
- Galley-cooled pistons – reduced piston crown temperatures by as much as 100°F (38°C) for enhanced durability, reduced piston ring wear and 30% longer cylinder life.
- Turbochargers – Custom-built for K Series engines and are available in single-stage or two-stage configurations to meet any application’s requirement.
