PRODUCT Detail

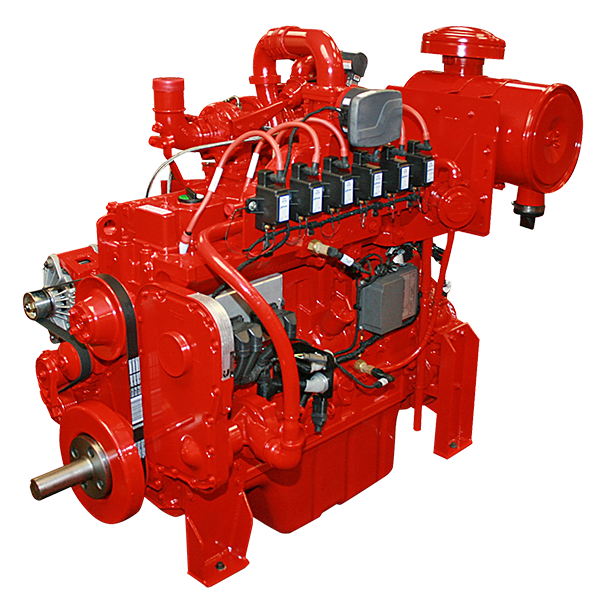

Wellhead compression applications require reliability and durability not found in every natural gas engine. For dependable low emission operations and world class support, you need Cummins QSL9G – an emissions compliant, high-performance natural gas engine that shares the proven heritage of the Cummins C Series diesel engines and many of the same heavy-duty components. You can depend on the QSL9G to stay emissions compliant, keep maintenance costs down and the gas flowing. Every day.
General Specifications
Inline 6-Cylinder, 4-Cycle, Natural Gas
Bore | 4.49 in (114 mm) |
Stroke | 5.69 in (145 mm) |
Displacement | 8.9 L (543 cubic in) |
Engine Power* | 175 hp (130 kW) |
Compression ratio | 9.7:1 |
Aspiration | Turbocharged and aftercooled |
Exhaust Type | Watercooled manifold |
Weight** | 1704 lb (773 kg) |
Lube oil capacity | 8 gal (30 L) |
Rotation | Counterclockwise |
* Rating dependent
** Weight is approximate and varies with options.
