PRODUCT Detail

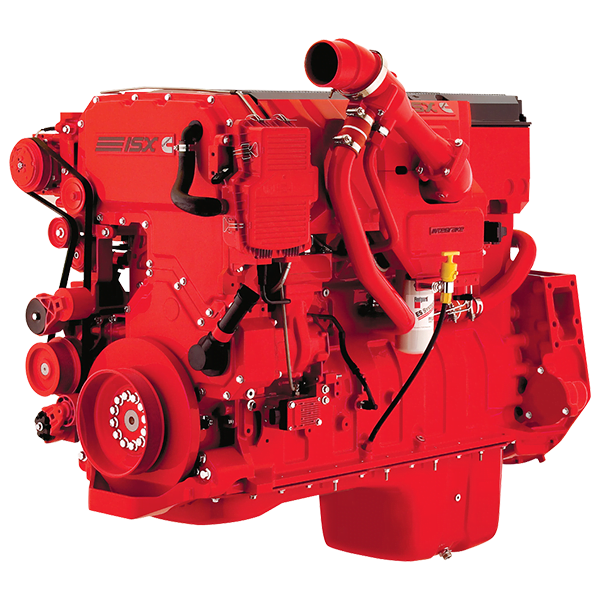

For superior performance, exceptional fuel efficiency and incredibly strong braking power, ultra-luxury motorhome owners choose Cummins ISX. Every time.
With ratings from 525-600 horsepower, the ISX delivers uncompromising performance for towing heavy loads and climbing steep mountain grades. Standard features include the patented Variable Geometry Turbocharger (VG Turbo), now with electric actuation for enhanced engine response at every rpm. While the standard Intebrake system produces over 600 braking horsepower for superior driver control on downhill slopes.
Plus, the ISX is certified and compliant to the toughest standards — the 2007 EPA emission regulations. A Cummins-designed and built particulate filter reduces particulate matter by over 90%, and a crankcase ventilation system virtually eliminates oil carryover. Best of all, there’s very little maintenance to these components, along with the rest of the engine.
Ask any owner, and they’ll tell you that ISX reliability is second to none. Every ISX is backed by the most extensive customer support network in the industry, with programs like Coach Care™ to meet your service needs as you travel across North America in your motorhome.
For Cummins-branded merchandise, electronic tools, literature and more, visit our PowerStore web site.
Advertised Horsepower | 525-600 hp | 392-447 kW |
Peak Torque | 1450-1850 lb-ft | 1966-2508 N•m |
Governed Speed | 2000-2100 rpm | |
Clutch Engagement Torque | 1000 lb-ft | 1356 N•m |
Number of Cylinders | 6 | |
Oil System Capacity | 14 U.S. gallons | 52.9 liters |
System Weight | 3,093 lb | 1,403 kg |
Engine Weight (Dry) | 3,021 lb | 1,370 kg |
Aftertreatment* | 72 lb | 33 kg |
*Increase over today’s muffler.
