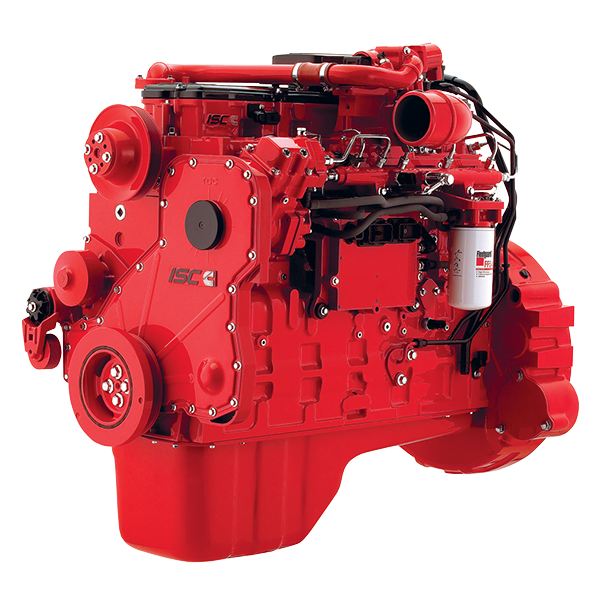

The ISC for 2007 runs cleaner, delivers superior performance and maintains fuel economy comparable to EPA ’02 compliant and certified engines. Ratings range from 240-330 hp. Add the optional compression brake, and it even stops better. How did we make these improvements and still meet stringent emissions controls? With a totally integrated system that includes our proven cooled-EGR subsystem, enhanced High Pressure Common Rail fuel injection system, our patented VG Turbo, Cummins Particulate Filter and a crankcase ventilation system.
And that’s just the start of all the features the ISC has to help your vehicles, and your business, run smoother.
The ISC is also designed to keep your maintenance to a minimum and your productivity in overdrive.
All backed by the best customer support in the business.
For more information including pricing and additional technical information, please contact your Cummins representative. If you need help finding a representative, the Cummins Sales and Service Locator tool can help.
The superior performance of the ISC comes from a constant flow of high-pressure fuel, injected with precise timing for optimum burn efficiency. Regardless of engine speed, the pressure inside the High Pressure Common Rail fuel system does not fluctuate. An increased number of injection events per cycle results in an ISC that runs both stronger and more efficiently than ever before.
Advertised Horsepower | 240-330 bhp | 179-246 kW |
Peak Torque | 660-1000 lb-ft | 895-1356 N•m |
Governed Speed | 2200-2400 rpm | |
Clutch Engagement Torque | 500 lb-ft | 678 N•m |
Number of Cylinders | 6 | |
Oil System Capacity | 6.3 U.S. gallons | 23.8 liters |
System Weight | 1,680 lb | 762 kg |
Engine (Dry) | 1,630 lb | 739 kg |
Aftertreatment* | 50 lb | 23 kg |
*Increase over today’s muffler
- Enhanced High Pressure Common Rail Fuel System – Delivers optimum balance of performance, emissions control and fuel economy across the entire operating range.
- Full-Authority Electronic Controls – Higher microprocessor capacity and speed for optimum control of the engine and aftertreatment.
- Cooled Exhaust Gas Recirculation – Lowers combustion temperatures for reduced emissions and optimized mpg.
- Variable Geometry Turbocharger – Enhanced response and control with electric actuation for infinite adjustment, providing exact boost across the operating range. Sliding-nozzle design increases reliability, durability.
- Cummins Particulate Filter – Fully integrated for uncompromising performance, reliability. Reduces particulate matter 90%.
- Crankcase Ventilation System – coalescing filter only needs replacement every 3rd to 4th oil change.
- Low Maintenance – Long oil change intervals maintained. Cummins Particulate Filter will go 200,000-400,000 miles (320,000-640,000 km) in a typical duty cycle for most vehicles before it needs cleaning.
- Heavy-Duty Features – Replaceable wet liners, roller followers, by-pass oil filtration, targeted piston cooling, robust valve train and more.
