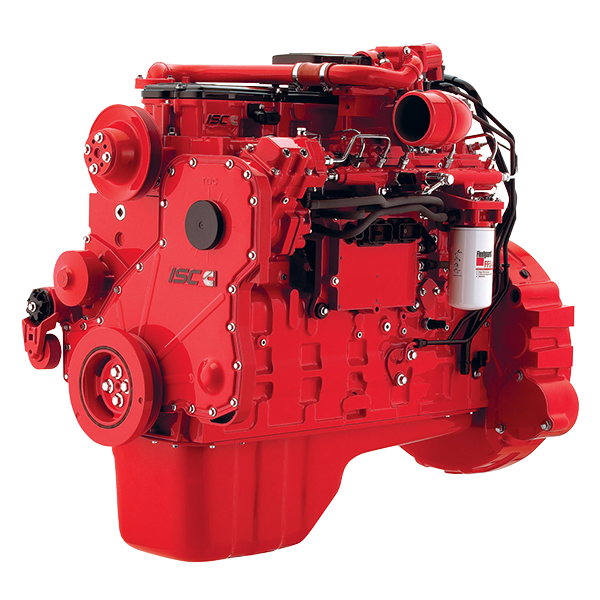

ISC (EPA 2004)
Power
240 - 315 hp
Torque
660 - 950 lb-ft
Certification
Applications
PRODUCT Detail
Overview
Specifications
Features
Brochures
The next evolution of the ISC is a continuation of the current product strategy. Cummins utilized product upgrades and emissions credits for a certified solution. By choosing the right technology for each market, Cummins ensures the highest quality launch at the lowest possible installed cost.
Key features include:
- Enhanced reliability through product upgrades and common components
- EPA guidelines met without emissions control devices such as no EGR or exhaust aftertreatment (catalyst or soot filter)
- Lower installed costs through minimal changes to customer options
- Simplified maintenance for lower cost of ownership
- Most current and some new OEMs will release the new ISC
- Noise levels reduced by up to 2 dBA, which represents a 37% reduction in noise power
- Wide usage of Six-Sigma tools throughout the design process
Product upgrades include:
- New high-pressure common-rail fuel system with electronic injectors for lowered emissions, reliability, and performance
- Robust breather that virtually eliminates oil carryover
- Roller followers from the ISL have been added to the ISC
- Coolant flows optimized and balanced for improved cooling for durability
- Oil cooler efficiency increased more than 30%, resulting in no increase in oil pan temperatures in spite of the higher allowable top tank temperatures
- Block and cylinder head strengthened to support peak cylinder pressures and durability
- Targeted piston cooling for piston and piston pin life
- LF9009 combination bypass and full-flow oil filter
N/A
N/A
