GTA8.3 Gas Compression Applications
Power
175 - 190 hp
Torque
-
Certification
Applications
PRODUCT Detail
Overview
Specifications
Features
Brochures

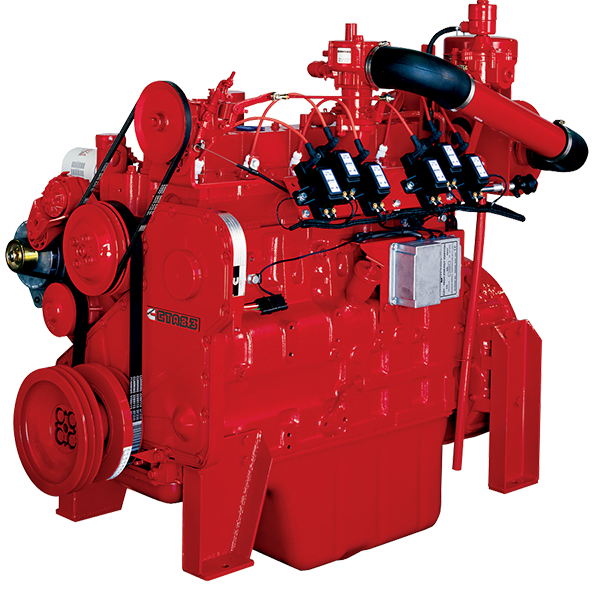

Wellhead compression applications require reliability and durability. For dependable operations and world class support, you need the Cummins GTA8.3 – a high-performance natural gas engine that shares the proven heritage of the Cummins C Series diesel engines and many of the same heavy-duty components. You can depend on the GTA8.3 to keep maintenance costs down and the gas flowing. Every day.
General Specifications
Inline 6-Cylinder, 4-Cycle, Natural Gas
Bore | 4.49 in (114 mm) |
Stroke | 5.32 in (135 mm) |
Displacement | 8.3 L (505 cubic in) |
Engine Power* | 175-190 hp (131-142 kW) |
Compression ratio | 8.5:1 |
Aspiration | Turbocharged and aftercooled |
Exhaust Type | Dry manifold |
Weight** | 1650 lb (748 kg) |
Coolant capacity | 2.9 gal (10.9 L) |
Lube oil capacity | 6.5 gal (32.0 L) |
Rotation | Counterclockwise |
* Rating dependent
** Weight is approximate and varies with options.
