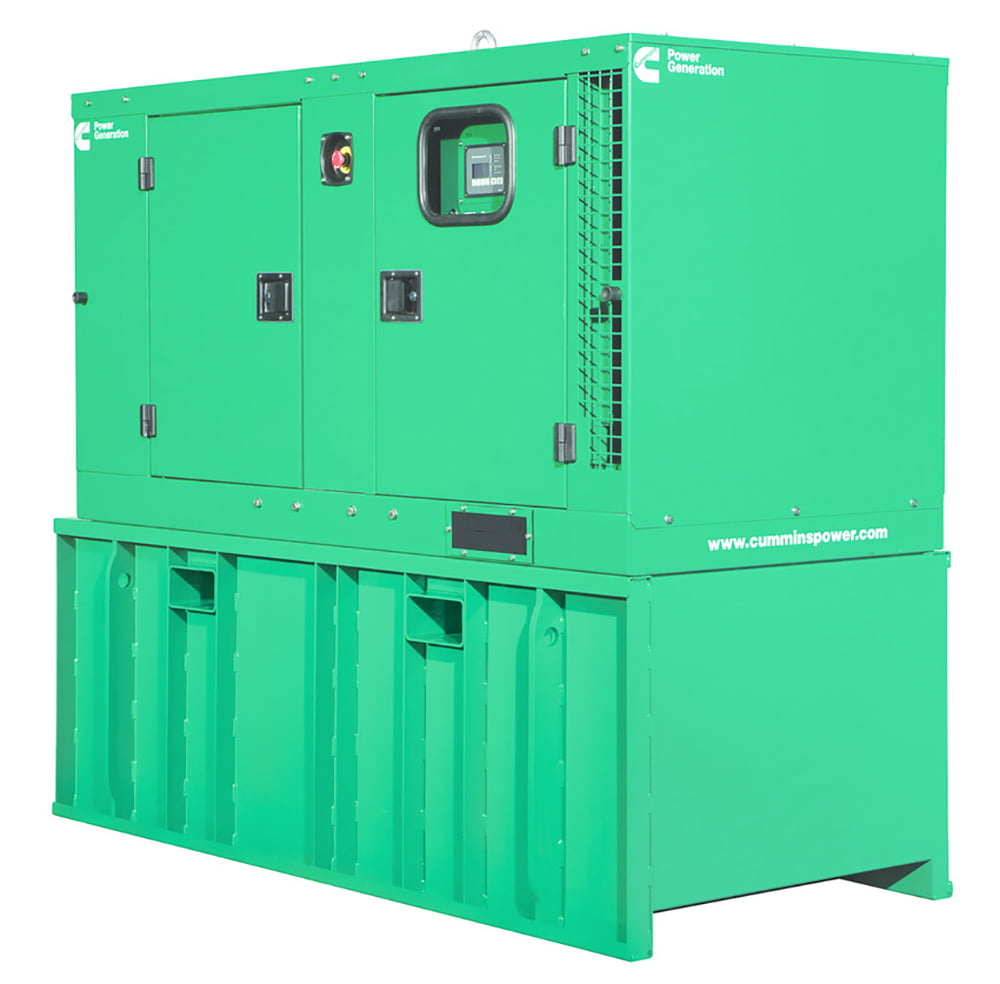

This Cummins® commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary Standby, Prime Power, and Continuous duty applications.
Design: 4 cycle, in-line, naturally aspirated
Bore: 91.7 mm (3.6 in)
Stroke: 127 mm (5 in)
Displacement: 2.5 litre (153 in3)
Cylinder block: Alloy cast iron, in-line 3 cylinder
Battery capacity: 65 AH
Battery charging alternator: 36 Amps
Starting voltage: 12 volt, negative ground
Fuel system: Direct injection
Fuel filter: Spin-on fuel filters with water separator
Air cleaner type: Dry type replaceable element
Lube oil filter type(s): Spin on full flow filter
Standard cooling system: 122 °F (50 °C) ambient radiator with coolant recovery system
Heavy-duty engine – Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.
Alternator – Excellent motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads.
Control system – The PowerCommand® 1.1 electronic control is standard equipment and provides total genset system integration, including automatic remote starting/stopping, alarm and status message display.
Cooling system – Standard integral radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
Enclosures – Weather-protective and sound-attenuated enclosure. Max 74 db @ 1 m @ 100% load factor.
Warranty – Backed by a comprehensive warranty and worldwide distributor network.
Remote operations – High capacity 1000 L fuel tank, robust structural strength, and pilferage protected lockable enclosure.
Extended service interval – Optional 1000 hour fuel filter, lube oil and air filter change intervals.
Lifting capability – Single point lifting arrangement for ease of transportation. Additional fork-lift pockets also provided.
Integrated ATS – Automatic transfer switch and manual by-pass switch integrated inside the genset enclosure.
